Versalift VTP-40-NE Cable Placer

Versalift VTP-40-NE Brochure
More Information
Cable Place VTP-40_NE Versalift

GENERAL SPECIFICATIONS (Based on 40 in. (1.02 m) Frame Height)

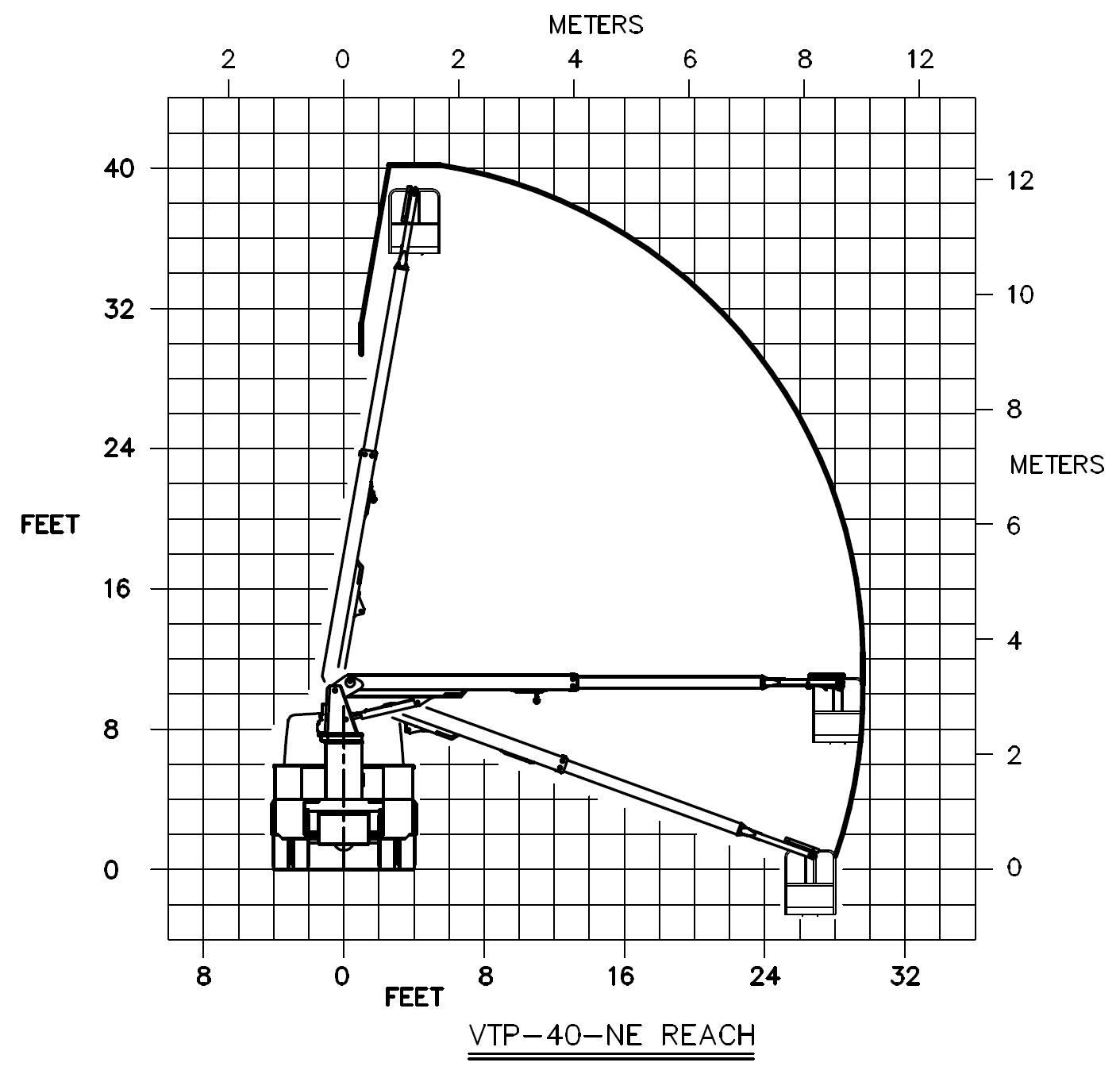

  VTP-40-NE VTP-40-NE Boom Travel
Horizontal Reach 29 ft 7 in.(9.0 m)
Platform Capacity 500 lbs (226 kg)
Cable Down Load Capacity 150 lbs (68 kg)
Total Unit Capacity 500 lbs (226 kg)
Side Pull Capacity (Fairlead retracted) 600 lbs (270 kg)
Side Pull Capacity (Fairlead extended) 450 lbs (200 kg)
With Standard Pedestal
Height to Bottom of Platform 35 ft (10.7 m)
Working Height 40 ft (12.2 m)
Stowed Travel Height 11 ft 6 in (3.5m)
Weight of Lift 3,400 lbs. (1540 kg)
Hydraulic System
Operating Pressure 2500 PSI (175 kg/cm2)
Flow Rate 12 GPM (45 lpm)

10 micron Return

System Type Closed Center
Power Source PTO Pump
Boom Action
Outer/Inner Boom Travel minus 20 to +80 degrees
Inner Boom Extension 110 in. (2.8 m)
Rotation 370° Non-Continuous


  • Intercom System
  • Tow Line Winch
  • Lify Eye
  • Reel Lift
  • Strand Carrier
  • Tensioning Brake
  • Capstan Winch
  • Bull Wheel Cable Guides
  • Fair Leads
