Versalift VST-7500-I Articulated / Telescopic Aerial Bucket Trucks with Optional Material Handling

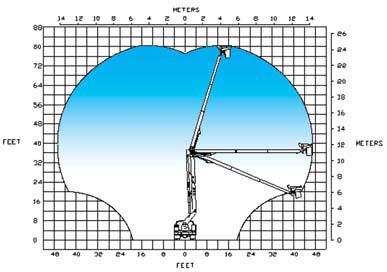

80 Feet of Working Height
47 Feet of Horizontal Reach
33,000 GVWR Non-FET Chassis
CREATED THE DESIGN
TIME created the concept and introduced the design of
the Versalift VST-7500, the only machine on the market that offers
80 feet of working height and 47 feet of horizontal reach, and
over 5,000 lbs. of payload capacity all on a single rear axle
chassis. This originality is a core tradition of TIME Manufacturing
Co. and allows us to always be a step ahead of competitive
machines with innovative features and proven reliability.
The unique and customizable design of the Versalift VST Series
ensures that you receive a quality- engineered product that meets
our industry-specific needs. Each model can be further
customized to include a variety of options that enhance the overall
capabilities of the unit.
INCREASED OVERALL REACH AND CAPACITY
The Versalift VST-7500 is the only telescopic/articulated
machine on the market that offers 80 feet of working height on a
33,000 GVWR, non-FET chassis. This unique configuration
gives you both the height to tackle almost any size pole, and the
compactness that allows you to work in the tightest working
DECREASED INSPECTION TIME
Inspection time is reduced through the effective use of torque
stripe on all critical fasteners. Operators may quickly perform a
visual walk around inspection of the Versalift VST Series prior to
use to determine if all bolts are securely fastened and the unit
is safe for mechanical operation.

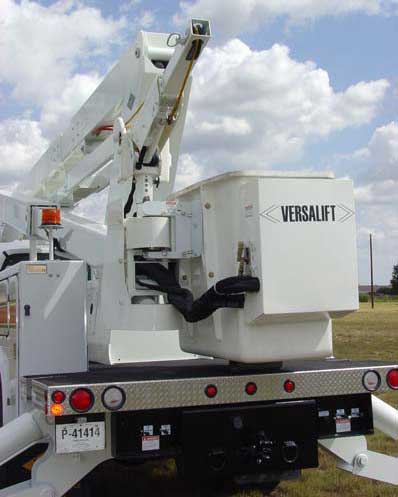

PLATFORM SUPPORT MOUNTED JIB & WINCH
The Versalift VST Series is available with a removable jib &
winch increasing its flexibility and allowing it to be used in a
wide variety of applications. With the platform support mounted
jib and 180º rotator, setup time decreases and productivity
increases as there is less need for accuracy when determining
distance to the work site. Operators can more easily get the
load to the work area. In addition, the platform support mounted
jib is self-leveling which automatically levels the load as the
boom is raised or lowered. The operator is able to focus more
on load placement and less on load leveling.
Ensuring that dielectric integrity is maintained is a necessity.
The Versalift VST Series maintains a minimum insulation gap
of 108 inches with the fiberglass inner boom fully retracted.
This allows a Category C, 46KV rating with the fiberglass inner
boom in any position, including fully retracted.
The VST-7500 is also available with Category B, 69 KV or
Category A certifications, increasing it’s flexibility and allowing it
to be used in a wider variety of applications. You save money by
having one machine capable of performing work that most often
requires multiple and different types of units.
LOWER LIFECYCLE COSTS
There is no mandatory rebuild on the Versalift VST Series
because it is designed and built to last. Besides reducing
lifecycle costs in pure dollars and cents, the Versalift VST Series also gives superior reliability and serviceability over time.

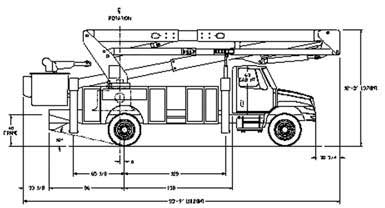

GENERAL SPECIFICATIONS (Based on 40 in. (1.02 m) Frame Height)
||46 ft 10in (14.3m)
|Maximum Platform Capacity
||800 lbs (360kg)
|Lower Boom Lift Eye Capacity
||1500 lbs (680kg)
|Maximum Jib Capacity
||2000 lbs (907kg)
|With Standard Pedestal
|Height to Bottom of Platform
||75 ft (22.9m)
||85 ft (25.9m)

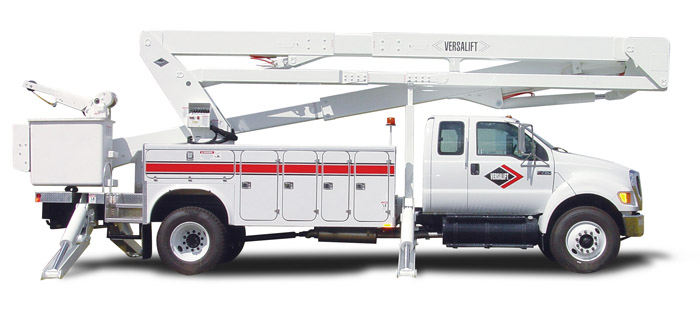

|Stowed Travel Height
||12 ft 5 in (3.8m)
||3000 PSI (205 kg/cm2)
||10 GPM (38 lpm)
10 micron return
100 mesh section
- Specifications may vary without prior notification
- Required GVWR can vary significantly with chassis, lift mountings location, service body, accessories, and desired payload.
- Multiple Outrigger Options
- Second Set of Tool Power Ports
- Lifting Eye
- Outrigger/Boom Interlock System
- Emergency Power
- Material Handling Jib & Winch with Hydraulic Extension and Articulation
- Two-Speed Manual Throttle Control
Optional Material Handling Jib & Winch provides up
to 2,000 lbs. of material handling capacity.
